PULSE RECTIFIERS
with
PROCESS COMPUTER
for
SULPHURIC HARD ANODIZING
and
CHROMIC ANODIZING

main unit
Main Unit 		 remote control panel
Remote control panel

GENERAL FEATURES

SULPHURIC HARDANODIZING

  • Constant current with adjustable max voltage limit
  • Smoothing device for low ripple
  • Possibility of superimposing pulses on the base level (Pulse Waveform)
  • Auxiliary output (1/100 of rated value)
  • Automatic working according to ELCA process computer APC

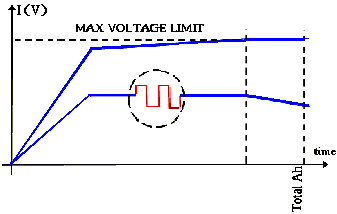

I,V


CHROMIC ANODIZING

  • Constant voltage control with adjustable max current limit
  • Smoothing device for low ripple
  • Automatic working according to ELCA process computer APC

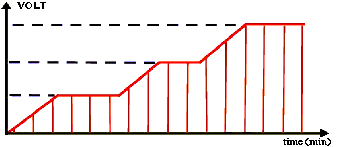

ramp

STANDARD MODELS


SULPHURIC HARDANODIZING
100 V
AMPERE
Base
Ib		 Pulse
Ip		 Max.aver.curr.
Irms
300 A 450 A 405 A
600 A 900 A 810 A
1000 A 1500 A 1350 A
1500 A 2250 A 2025 A
2000 A 3000 A 2700 A
3000 A 4500 A 4050 A
4000 A 6000 A 5400 A
5000 A 7500 A 6750 A
6000 A 9000 A 8100 A
CHROMIC ANODIZING
60 V
AMPERE

300 A
600 A
1000 A
1500 A
2000 A
3000 A
4000 A
5000 A
6000 A
