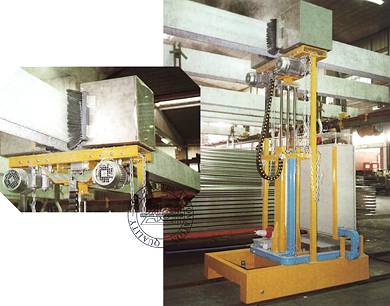

	ROTOCLEANER FOR THE CLEANING OF ANODIC BARS The ROTOCLEANER automatic system is really the latest novelty in the dry-cleaning of anodic bars. ROTOCLEANER can be installed in any anodizing plant: it is sufficient for the anodic bar to be in a fixed position and the ROTOCLEANER automatically brushes it on its whole length removing the soda and the fifth residues deposited on the jigs contact surface entirely. The ensuing powder is sucked up and collected in a special container. The ROTOCLEANER is handled through a PLC. Its feeding speed and the speed of its brushes are adjustable through INVERTERS so as to optimize the operation of the machine on any type of bar and on any type of dirt to be removed.

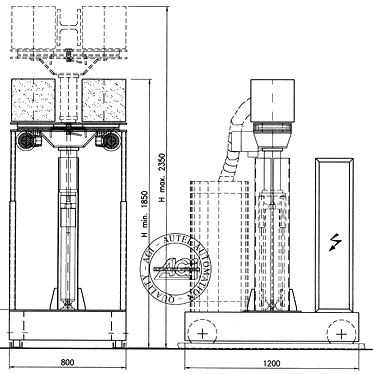

TECHNICAL DATA Cleaned anodic bars have the following advantages: reduction in the consumption of electricity optimum electric contact between the anodic bars and jigs reduction in the anodizing times better quality of the anodized material Installed power 4 Kw Weight 250 kg

---
